M16 2 3 4 Pin 250V 15A Assembly Power Cable Joint Push Self Locking Male Female Waterproof Wire Connector

Place of Origin:Guangdong, China
Model Number:M16
Type:Push Lock Connector
Application:Power/Signal/Led lighting
Gender:Male/Female
Color:Black
Pin:2/3/4pin
Current rating:10A/5A
Voltage rating:250V
Cable OD:3.5mm-8.0mm
Waterproof level:IP67/IP68
Product name:Waterproof connector
Material:PA66
Connector type:Solder with wire

Product Description:

M16 2 3 4 Pin 250V 15A Assembly Power Cable Joint Push Self Locking Male Female Waterproof Wire Connector

Description&Specs:



Contact Numbers
2
3
4
Voltage Rating
250V
250V
250V
Current Rating
10A
10A
5A
Wire Gague
≤1.0mm2
≤0.75mm2
≤0.3mm2
Cable OD
3.5mm-8.5mm
Mechanical Life
3000mating cycles
Operating Rating
-40℃-+105℃
Waterproof level
IP65/IP67/IP68
Seal Ring
8.5mm

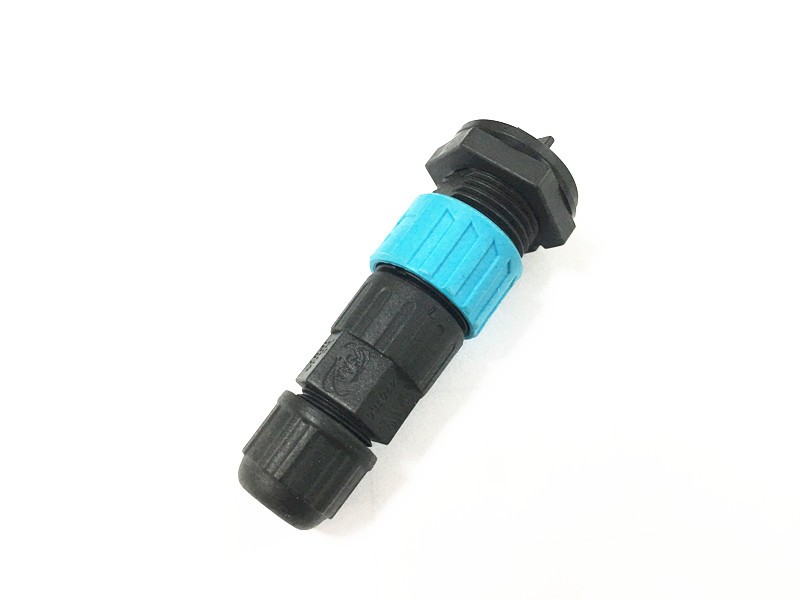

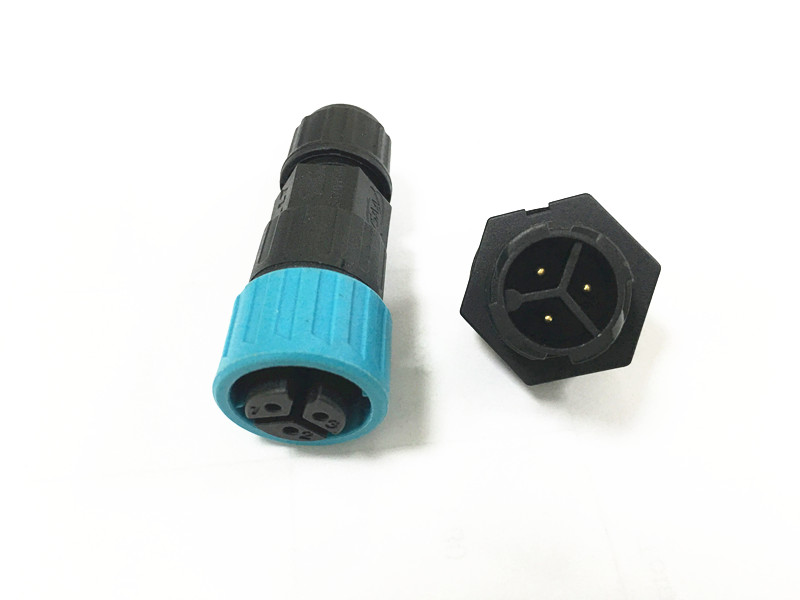

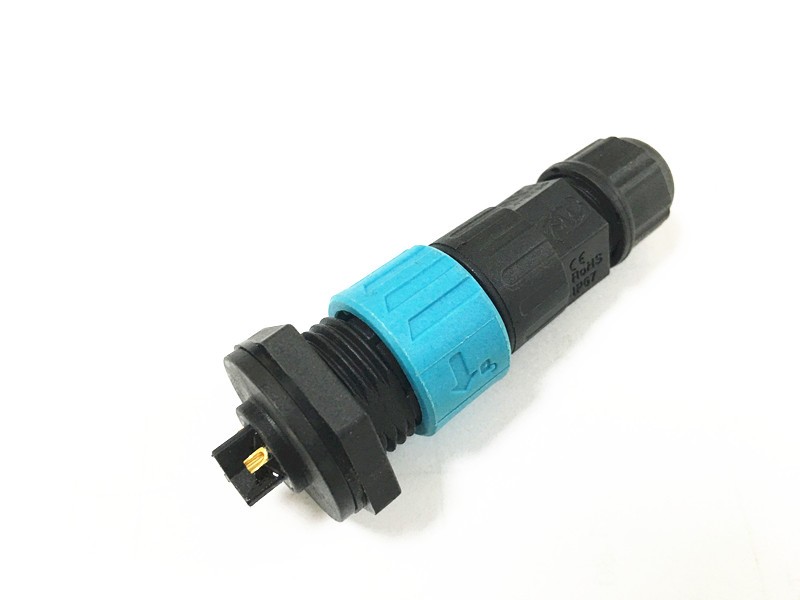

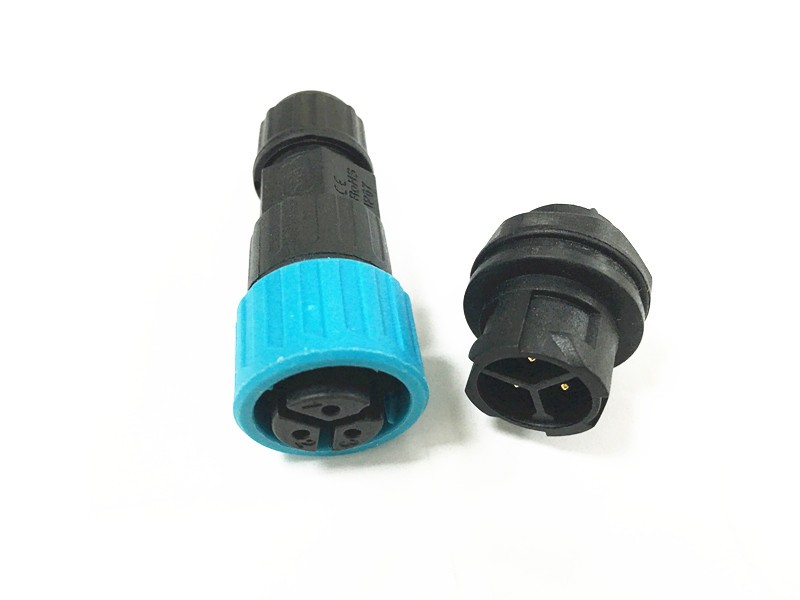

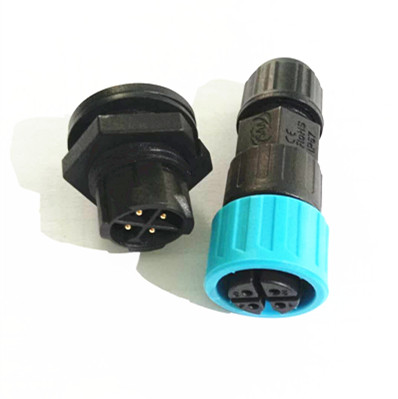

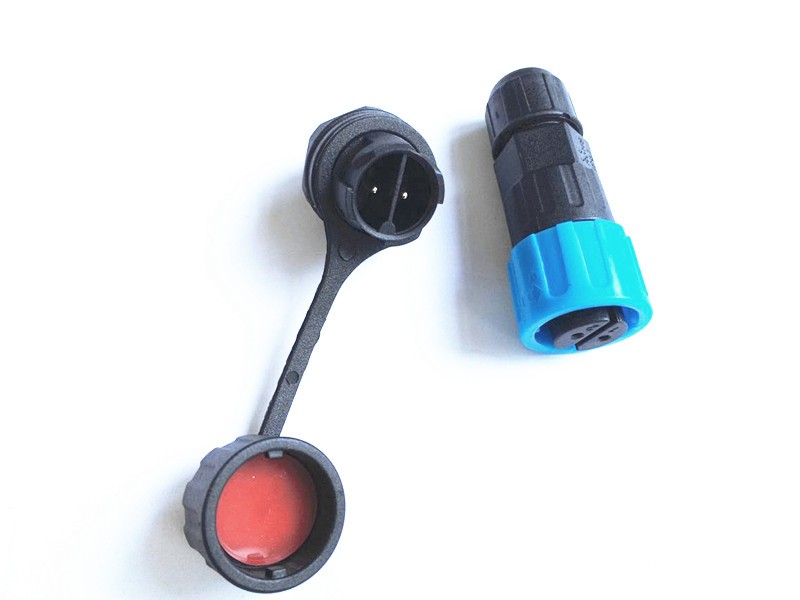

Detail Images:




Application:


Provide solutions for outdoor waterproof connections for customers, and offer factory-customized products.

Factory price,High quality!

For more details,Please kindly contact us,Welcome to your inquiry!
