X type 4 way ip67 2 3 pin cable wires waterproof screw connector

Place of Origin:Guangdong, China
Model Number:L20 X assembly
Type:Adapter
Application:Power
Gender:X connector
Color:Black
Pin:2/3pin
Cable OD:6mm-10mm
Waterproof level:IP67
Current rating:20A
Voltage rating:300V
Operating rating:-40℃-+105℃
Material:PA66
Connector type:Screw with cable

X type 4 way ip67 2 3 pin cable wires waterproof screw connector

Description&Specs:

Contact Numbers	2	3
Voltage Rating	300V	300V
Current Rating	20A	20A
Wire Gague	2*1.5mm2/2*1.0mm²/2*0.75mm²	3*1.5mm²/3*1.0mm²/3*0.75mm²
Cable OD	6mm-10mm
Operating Rating	-40℃-+105℃
Waterproof level	IP67
Seal Ring	6.5/7.5/10mm

Before quotation, please tell us the cable details.

1. Current Rating, such as: 8A...

2. Wire size, such as: 2*1.5mm2...

3. Cable OD(over diameter), such as 8mm...

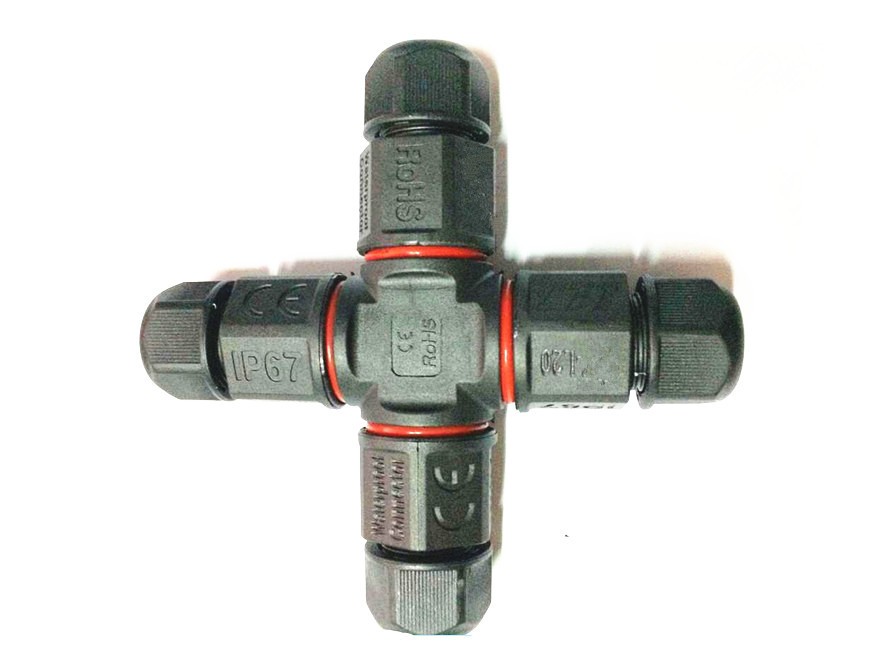

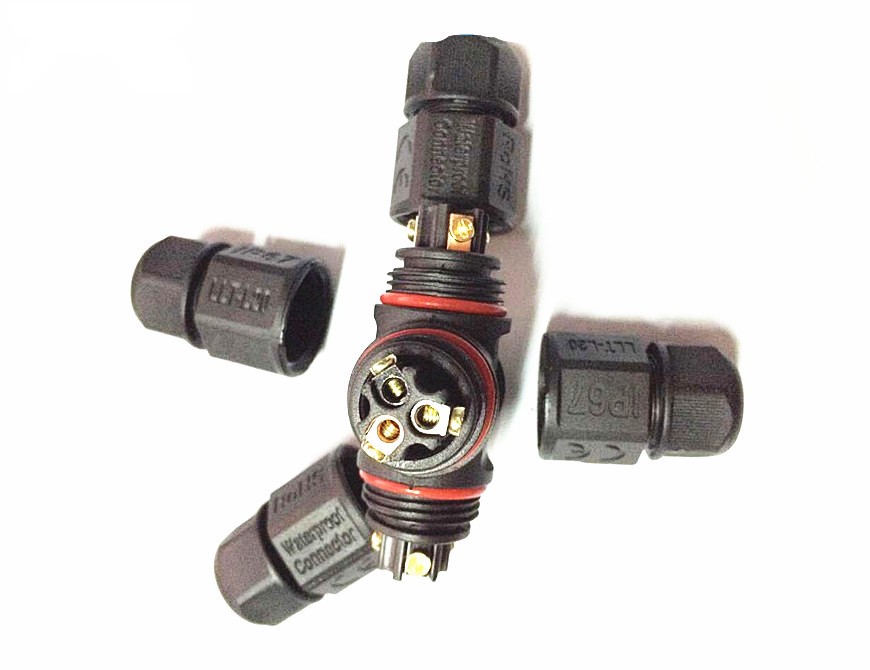

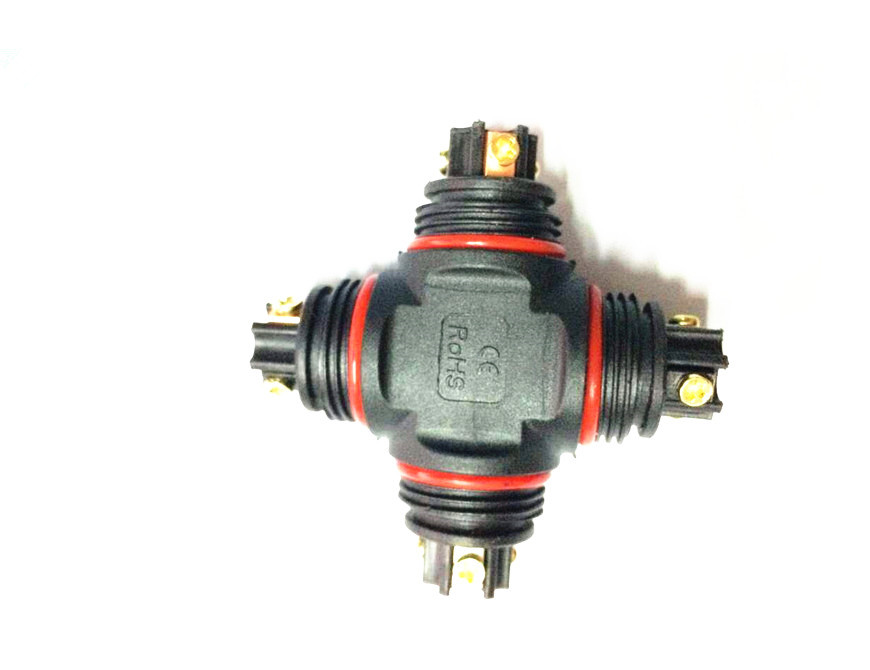

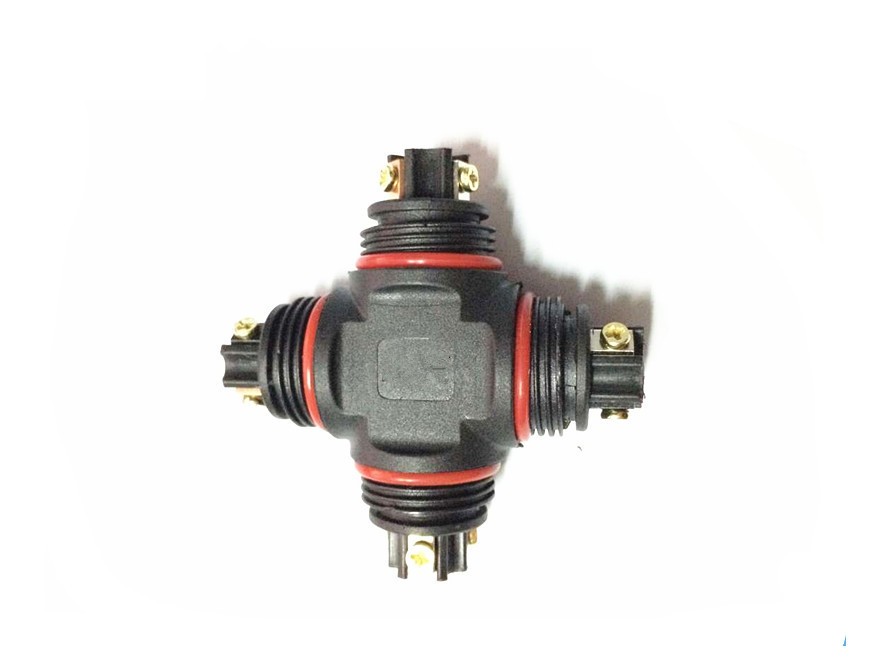

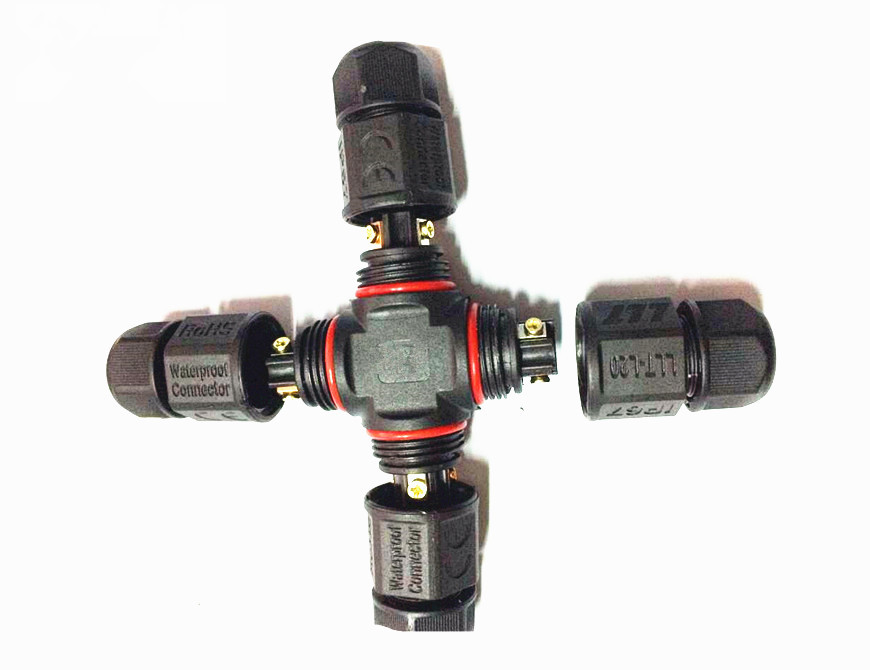

Detail Images:

Applications:

For more details,Please kindly contact us,Welcome to your inquiry!
